Product Summary

The BSM400GA120DN2 is an IGBT Power Module.

Parametrics

BSM400GA120DN2 absolute maximum ratings: (1)Collector-emitter voltage VCE: 1200 V; (2)Collector-gate voltage, VCGR: 1200 V; (3)Gate-emitter voltage VGE: ± 20V; (4)DC collector current, IC: 550A; (5)Pulsed collector current, tp = 1 ms, ICpuls: 1110A; (6)Power dissipation per IGBT: 2700W; (7)Chip temperature Tj: + 150 ℃; (8)Storage temperature Tstg: -40 to + 125℃; (9)Thermal resistance, chip case RthJC≤ 0.05 K/W; (10)Diode thermal resistance, chip case RthJCD≤ 0.125K/W; (11)Insulation test voltage, t = 1min. Vis: 2500 Vac; (12)Creepage distance: 20 mm; (13)Clearance: 11mm; (14)DIN humidity category, DIN 40 040: F sec; (15)IEC climatic category, DIN IEC 68-1: 40 / 125 / 56sec.

Features

BSM400GA120DN2 features: (1)Single switch; (2)Including fast free-wheeling diodes; (3)Package with insulated metal base plate.

Diagrams

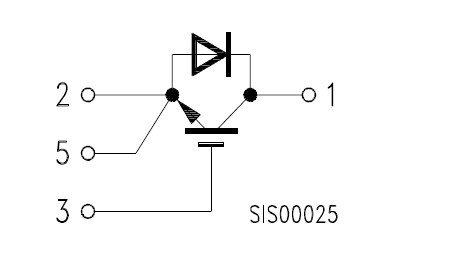

BSM400GA120DN2 Circuit Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BSM400GA120DN2
BSM400GA120DN2
Infineon Technologies
IGBT Modules 1200V 400A SINGLE
Data Sheet
0-6: $114.15
6-10: $102.74
BSM400GA120DN2C
BSM400GA120DN2C
Infineon Technologies
IGBT Modules IGBT 1200V 400A
Data Sheet
0-6: $107.40
6-10: $96.60
BSM400GA120DN2FS
BSM400GA120DN2FS
Infineon Technologies
IGBT Modules IGBT 1200V 400A
Data Sheet
0-6: $107.40
6-10: $96.60
BSM400GA120DN2F
BSM400GA120DN2F
Infineon Technologies
IGBT Modules IGBT 1200V 400A
Data Sheet
0-6: $107.40
6-10: $96.60
BSM400GA120DN2FS_E3256
BSM400GA120DN2FS_E3256
Infineon Technologies
IGBT Modules IGBT 1200V 400A
Data Sheet
0-6: $118.20
6-10: $106.20
BSM400GA120DN2S
BSM400GA120DN2S
Infineon Technologies
IGBT Transistors 1200V 400A SINGLE
Data Sheet
0-6: $114.15
6-10: $102.74
BSM400GA120DN2S_E3256
BSM400GA120DN2S_E3256
Infineon Technologies
IGBT Modules IGBT 2.5V 400A
Data Sheet
0-6: $118.20
6-10: $106.20
