Product Summary

The F4-150R12KS4 is an IGBT-Module.

Parametrics

F4-150R12KS4 absolute maximum ratings: (1)collector emitter voltage: 1200V; (2)DC collector current: 150A; (3)repetitive peak collector current: 300A; (4)total power dissipation: 960W; (5)gate emitter peak voltage: ±20V.

Features

F4-150R12KS4 features: (1)forward voltage: 2.30V; (2)peak reverse recovery current: 51A; (3)recovered charge: 7.00μC; (4)reverse recovery energy: 2.40 mJ; (5)thermal resistance, junction to case: 0.32K/W.

Diagrams

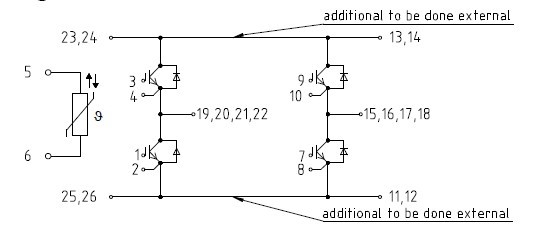

F4-150R12KS4 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
F4-150R12KS4
F4-150R12KS4
Infineon Technologies
IGBT Modules N-CH 1.2KV 180A
Data Sheet
0-6: $144.80
6-10: $130.31
