Product Summary

The fs75r06ke3 is an IGBT module.

Parametrics

fs75r06ke3 absolute maximum ratings: (1)collector emitter voltage, VCES: 600V; (2)DC collector current, IC nom: 75A; (3)repetitive peak collector current, ICRM: 150A; (4)total power dissipation, Ptot: 250W; (5)gate-emitter peak votlage, VGES: ±20V.

Features

fs75r06ke3 features: (1)Configuration: Hex; (2)Collector- Emitter Voltage VCEO Max: 600 V; (3)Continuous Collector Current at 25 C: 75 A; (4)Maximum Operating Temperature: + 150℃; (5)Package / Case: Econo 2; (6)Maximum Gate Emitter Voltage: +/- 20 V; (7)Minimum Operating Temperature: - 40℃; (8)Mounting Style: Screw.

Diagrams

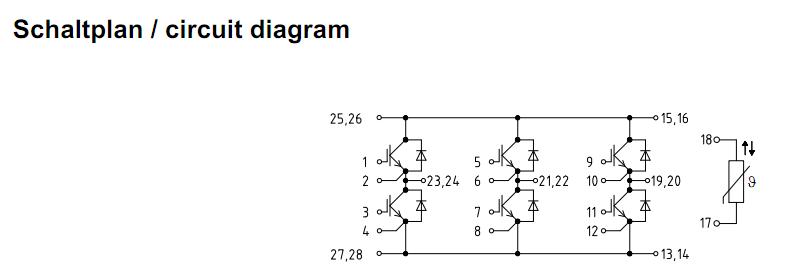

fs75r06ke3 circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FS75R06KE3
FS75R06KE3
Infineon Technologies
IGBT Modules IGBT-MODULES 600V
Data Sheet
0-5: $66.94
5-10: $53.55
