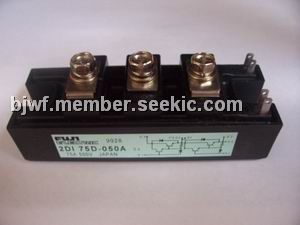

Product Summary

The 2DI75D-050A is a power transistor module. The applications of the device include high power switching, AC motor controls, DC motor controls and uninterruptible power supply.

Parametrics

2DI75D-050A absolute maximum ratings: (1)VCBO: 600V; (2)VCEO: 600V; (3)VCEO(SUS): 450V; (4)VEBO: 7V; (5)IC: 75V; (6)ICP: 150A; (7)-IC: 75A; (8)IB: 4.5A; (9)IBP: 9A; (10)PC: 350W; (11)PC: 700W; (12)Tj: 150℃; (13)Tstg: -40 to 125℃; (14)m: 175g; (15)Viso: 2500V.

Features

2DI75D-050A features: (1)including free wheeling diode; (2)high DC current gain; (3)insulated type.

Diagrams

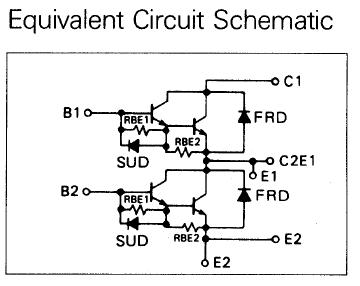

2DI75D-050A equivalent circuit
