Product Summary

The FP15R12YT3 is a module.

Parametrics

FP15R12YT3 absolute maximum ratings: (1)collector-emitter voltage, VCES: 1200V; (2)DC-collector current, IC: 15A; (3)repetitive peak collector current, ICRM: 30A; (4)total power dissipation, Ptot: 110W; (5)gate-emitter peak voltage, VGES: ±20V.

Features

FP15R12YT3 features: (1)repetitive peak reverse voltage, VRRM: 1200V; (2)DC forward current, IF: 15A; (3)repetitive peak forward curretn, IFRM: 30A; (4)I2t-value, I2t: 44A2s.

Diagrams

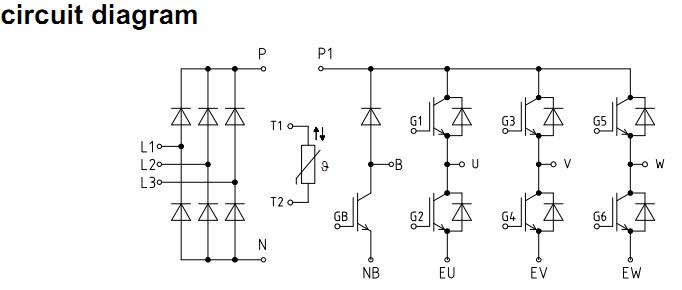

FP15R12YT3 circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FP15R12YT3
FP15R12YT3
Infineon Technologies
IGBT Modules N-CH 1.2KV 25A
Data Sheet
0-1: $25.38
1-10: $23.03
