Product Summary

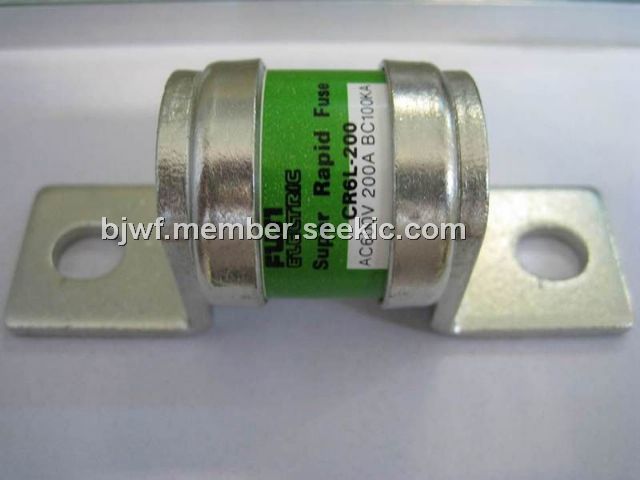

The CR6L-200 is a FUJI BLC, CR and CS types Super Rapid Fuse. It is an extremely reliable fuse which has been specially developed to provide protection for silicon diodes and thyristors. The CR6L-200 is suitable for inverters using semiconductors or transformers-rectifiers. The CR6L-200 is designed with a very small total I2t value which gives them a high speed interrupting action in the face of abnormal currents.
Parametrics
CR6L-200 absolute maximum ratings: (1)Amperage Rating: 200; (2)Voltage: 600.
Features
CR6L-200 features: (1)The total clearing I2t is small and the semiconductor circuit is completely protected; (2)Since the peak arc voltage at the time of interruption is low damage to other equipment does not occur; (3)High interrupting capacity of 200kA at 1000V AC; (4)The CS type is provided with a blown fuse indicator. An alarm contact block (1NO or 1NC) can also be attached.
