Product Summary
The SKM400GB176D is a trench IGBT module.
Parametrics
SKM400GB176D absolute maximum ratings: (1)VCES: 1700V; (2)IC, TC=25(80)℃: 430A; (3)ICRM, tp=1ms: 600A; (4)VGES: ±20V; (5)tpsc, VCC=1200V; VGE≤20V; Tj=125℃:10μs.
Features
SKM400GB176D features: (1)Homogeneous Si; (2)Trench=Trenchgete technology; (3)VCEsat with positive temperature coefficient; (4)High short circuit capability, self limiting to 6 x Ic.

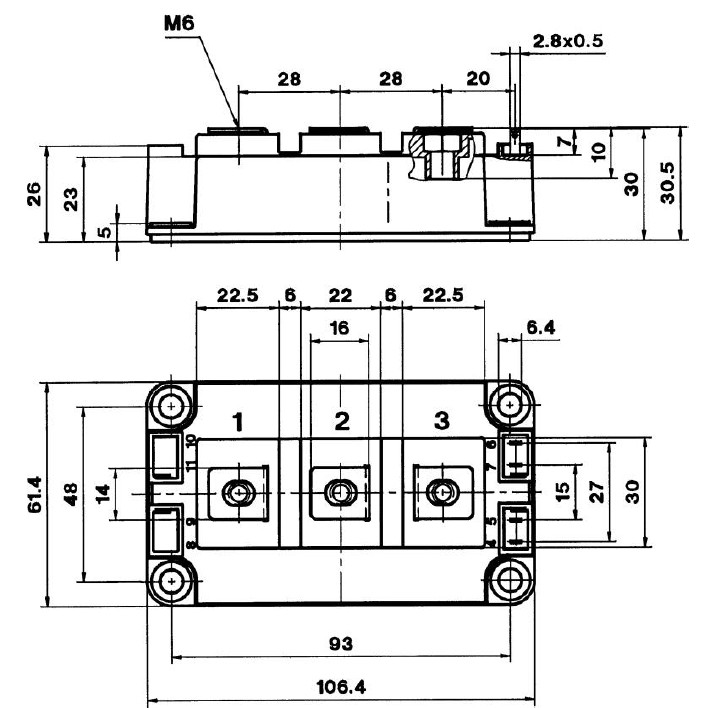

Diagrams
 |
