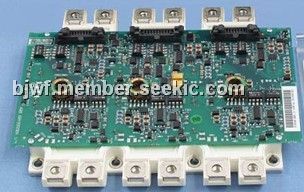

Product Summary
The FS450R12KE3/AGDR-71C is an IGBT3 and EmCon High Efficiency diode.
Parametrics
FS450R12KE3/AGDR-71C absolute maximum ratings:(1)Collector emitter voltage, Tvj= 25℃, VCES: 1200V; (2)DC-collector current: Tc= 80℃, Tvj= 150℃, ICnom: 450A; Tc= 25℃, Tvj= 150℃, IC: 600A; (3)Repetitive peak collector current, tp= 1ms, ICRM: 900A; (4)Total power dissipation, Tc= 25℃, Tvj= 150℃, Ptot: 2100W; (5)Gate-emitter peak voltage, VGES: ±20V.
Features
FS450R12KE3/AGDR-71C features: (1)IT (AV) = 5 - 500A; (2)V DRM/V RRM=100 - 5000V; (3)Hermetic metal case with ceramic insulator; (4)Hermetic glass-metal seal; (5)Capsule package for double sided cooling; (6)Shallow design with single sided cooling; (7)International standard case; (8)In accordance with IEC international electrical committee standard.

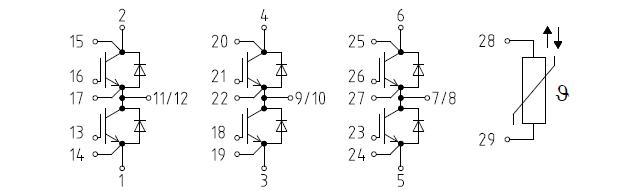

Diagrams
![]() |
