The FZ1600R12KF4 is a kind of IGBT module.
Parametrics
FZ1600R12KF4 maximum rated values: (1)collector-emitter voltage, VCES: 1200 V; (2)DC-collector current, IC: 1600 A; (3)repetitive peak collctor current at tp=1 ms, ICRM: 3200 A; (4)total power dissipation at tC=25℃, Transistor /transistor, Ptot: 10 kW; (5)gate-emitter peak voltage, VGE: ± 20 V; (6)DC forward current, IF: 1600 A; (7)repetitive peak forw. current at tp=1ms, IFRM: 3200 A; (8)insulation test voltage at RMS, f=50 Hz, t= 1 min. VISOL: 2,5 kV.
Features
FZ1600R12KF4 features: (1)internal insulation: Al2O3; (2)mounting torque when terminals M6 / tolerance +/-15%, M1: 5 Nm; (3)terminal connection torque M2: 2 Nm when terminals M4 / tolerance +5 / -10%; 8...10 Nm when terminals M8; (4)weight, G: ca.1500 g.

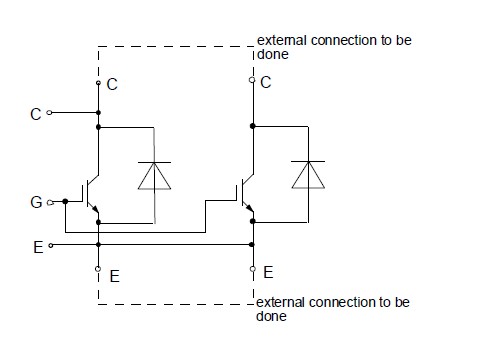

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FZ1600R12KF4 |
Infineon Technologies |
IGBT Modules 1200V 1600A SINGLE |
Data Sheet |
Negotiable |
|
||||||
|
FZ1600R12KF4< |
Infineon Technologies |
IGBT Modules N-CH 1.2KV 1.6KA |
Data Sheet |
|
|
||||||
