Product Summary

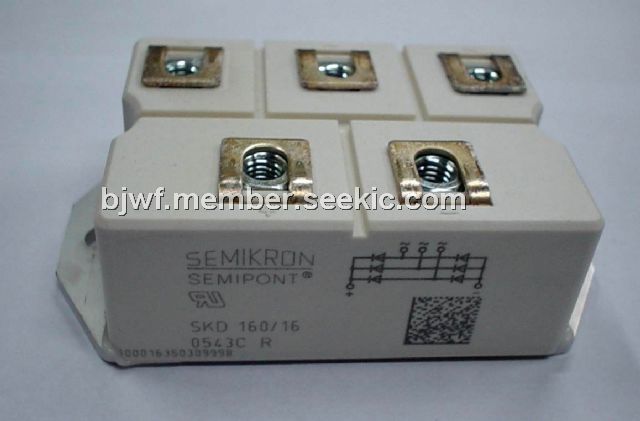

The SKD160 16 is a power bridge rectifier.
Parametrics
SKD160 16 absolute maximum ratings: (1)ID, Tcase=100℃: 110A; (2)Tamb=45℃; chassis: 28A; (3)IFSM, Tvj=25℃; 10ms: 1200A; (4)VF, Tvj=25℃, IF=300A: 1.9V; (5)Rthjc, per diode: 0.9℃/W; (6)Rthch, total: 0.03℃/W.
Features
SKD160 16 fearures: (1)Robust plastic case with screw terminal; (2)Large, isolated base plate; (3)Blocking voltage up to 1800V; (4)High surge currents; (5)Easy chassis mounting; (6)UL recognized.

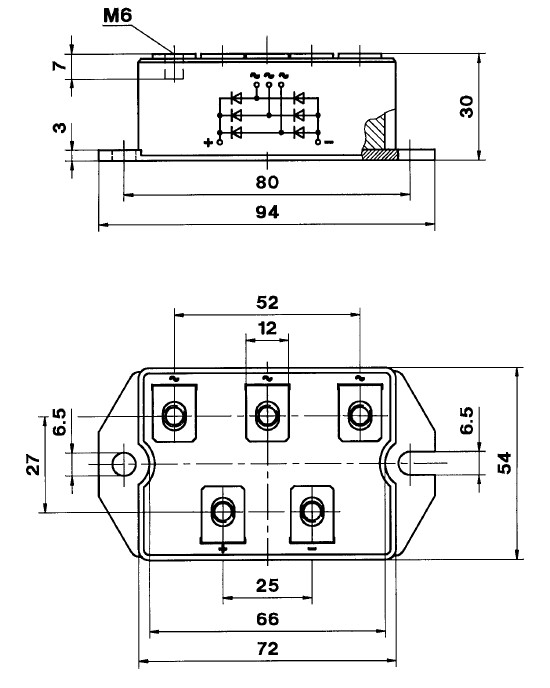

Diagrams
 |
