Product Summary

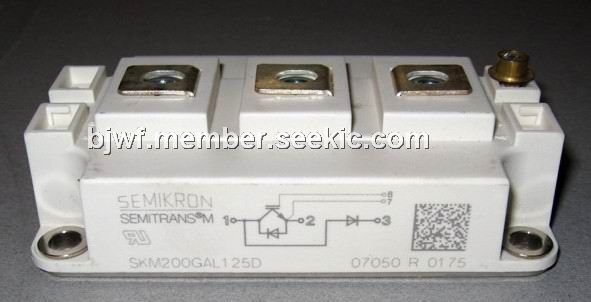

The skm200gal125d is a ultra fast IGBT module. The typical applications of the skm200gal125d are: Switched mode power supplies at fsw>20kHz; Resonant inverters up to 100kHz; Inductive heating; Electronic welders at fsw>20kHz.
Parametrics
skm200gal125d absolute maximum ratings: (1)VCES, Tj=25℃: 1200V; (2)IC, Tj=150℃: 200A; (3)ICRM, ICRM=2XICNOM: 300A; (4)VGES: ±20V; (5)tpsc, VCC=600V; VGE≤20V; Tj=125℃: 10μs.
Features
skm200gal125d features: (1)N channel homogeneous Si; (2)Low inductance case; (3)Short tail current with low temperature dependence; (4)High short circuit capability, self limiting to 6 x Icnom; (5)Fast and soft inverse CAL diodes; (6)Isolated copper baseplate using DCB direct copper bonding technology; (7)Large clearance and creepage distance.

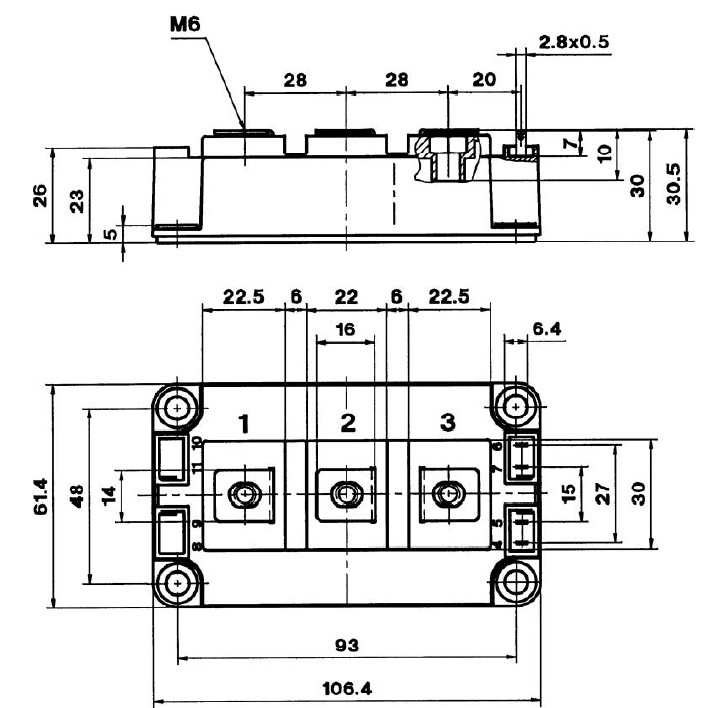

Diagrams
 |
