Product Summary

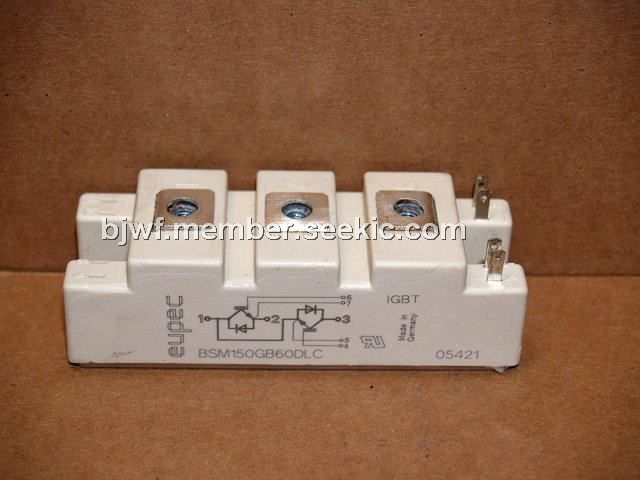

The bsm150gb60dlc is an IGBT module.

Parametrics

bsm150gb60dlc absolute maximum ratings: (1)collector emitter voltage, VCES: 600V; (2)DC collector current, ICnon: 150A; (3)repetitive peak collector current, ICRM: 300A; (4)total power dissipation, Ptot: 595W; (5)gate emitter peak voltage, VGES: ±20V; (6)DC forward current, IF: 150A; (7)repetitive peak forw current, IFRM: 300A.

Features

bsm150gb60dlc features: (1)input capacitance, Cies: 6.5nF; (2)reverse transfer capacitance, Cres: 0.6nF; (3)collector emitter cut off current, ICES: 1mA; (4)gate emitter leakage current, IGES: 400nA.

Diagrams

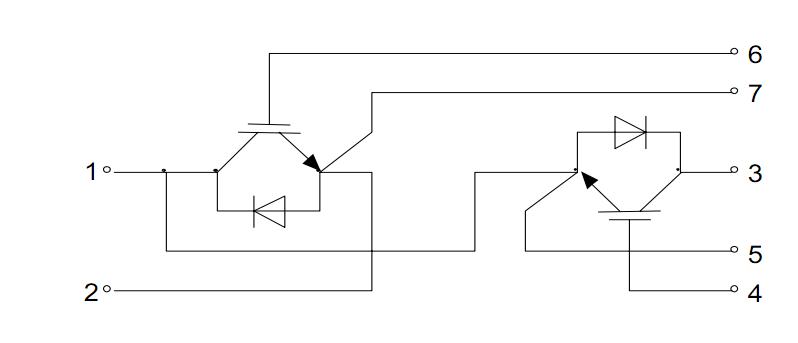

bsm150gb60dlc block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BSM150GB60DLC
BSM150GB60DLC
Infineon Technologies
IGBT Modules 600V 150A DUAL
Data Sheet
0-1: $46.06
1-10: $41.45
