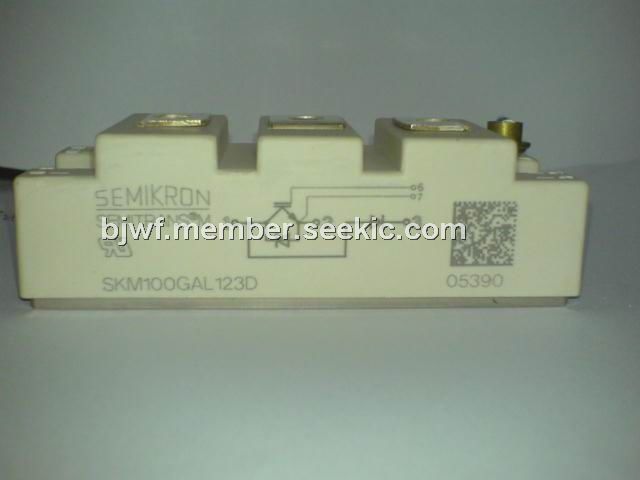

skm100gal123d

IGBT module, MOS input, 1200 V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $35.00~109.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $35.00~109.00

PartNumber:: skm100gal123d

Brand:: Semikron International - SEMIKRON | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Rita's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-08

From Other Seller

Part Number:skm100gal123d
US $35.00 - 109.00
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
HEF4093BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The skm100gal123d is an IGBT module.

Parametrics

skm100gal123d absolute maximum ratings: (1)VCES: 1200 V; (2)IC: 100 (90) A at Tc=25 (80) ℃; (3)ICRM: 150 A at tp=1 ms; (4)VGES: ± 20 V; (5)Tvj,(Tstg): -40 to +150 ℃ at TOPERATION ≤ Tstg; (6)Visol: 2500 V at AC, 1 min; (7)IF: 95 (65) A at Tc=25 (80) ℃; (8)IFRM: 150 A at tp=1 ms; (9)IFSM: 720 A at tp=10 ms; sin,;Tj=150 ℃.

Features

skm100gal123d features: (1)MOS input (voltage controlled); (2)N channel,homogeneous Si; (3)low inductance case; (4)very low tail current with low temperature dependecnce; (5)high short circuit capability,self limiting to 6×Icnom; (6)latch-up free; (7)fast & soft inverse CAL diodes; (8)isolated copper baseplate using DCB direct copper bonding technology; (9)large clearance (10 mm) and creepage distances (20 mm).
