Product Summary

The BSM50GD170DL is an IGBT module.

Parametrics

BSM50GD170DL absolute maximum ratings: (1)collector-emitter voltage VCES: 1700 V; (2)DC-collector current IC: 50 A; (3)repetitive peak collector current ICRM: 100 A; (4)total power dissipation Ptot: 480 W; (5)gate-emitter peak voltage VGES: ± 20 V; (6)DC forward current IF: 50 A; (7)repetitive peak forw. current IFRM: 100 A; (8)I2t - value, Diode, I2t: 1100 A2s; (9)insulation test voltage VISOL: 3,4 kV.

Features

BSM50GD170DL features: (1)forward voltage, VF: 6 V; (2)peak reverse recovery current, IRM: 36 A; (3)recovered charge, Qr: 6 μAs; (4)reverse recovery energy, Erec: 2 mWs.

Diagrams

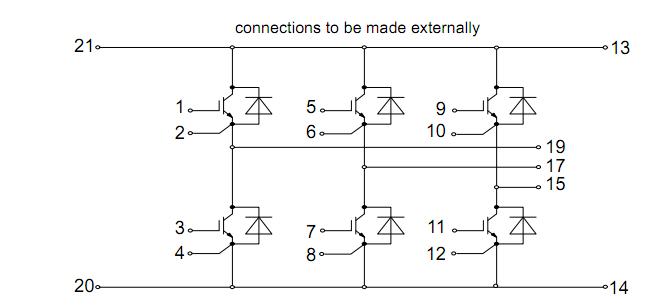

BSM50GD170DL block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BSM50GD170DL
BSM50GD170DL
Infineon Technologies
IGBT Modules N-CH 1.7KV 100A
Data Sheet
0-1: $98.08
1-5: $93.17
5-10: $88.27
