Product Summary
The FF200R12KT3 is a 62mm C-series module with fast trench/fieldstop IGBT3 and EmCon high efficiency diode.
Parametrics
FF200R12KT3 absolute maximum ratings: (1)collector emitter voltage: 1200V; (2)DC collector current: 200A; (3)repetitive peak collector current: 400A; (4)total power dissipation: 1050W; (5)gate emitter peak voltage: ±20V.
Features
FF200R12KT3 features: (1)forward voltage: 1.65V; (2)peak reverse recovery current: 150A; (3)recovered charge: 20μC; (4)reverse recovery energy: 9 mJ; (5)thermal resistance, junction to case: 0.20K/W.

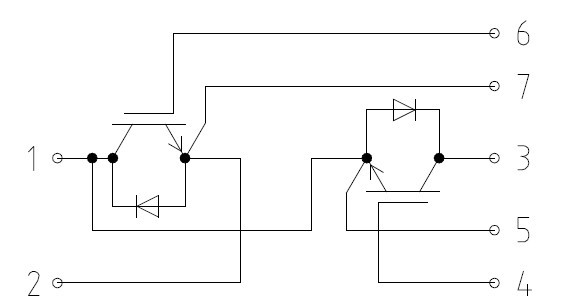

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FF200R12KT3 |
Infineon Technologies |
IGBT Modules N-CH 1.2KV 295A |
Data Sheet |
|
|
||||||||
|
FF200R12KT3_E |
Infineon Technologies |
IGBT Modules IGBT 1200V 200A |
Data Sheet |
|
|
||||||||
