Product Summary

The FP75R12KE3 is an IGBT module.

Parametrics

FP75R12KE3 absolute maximum ratings: (1)repetitive peak reverse voltage, VRRM: 1600V; (2)maximum RMS current at rectifier output, IRMSmax: 115A; (3)forward current RMS maximum per chip, IFRMSM: 80A; (4)surge forward current, IFSM: 500A; (5)I2t value, I2t: 1250A2s.

Features

FP75R12KE3 features: (1)forward voltage, VF: 1.15V; (2)threshold voltage, V(TO): 0.8V; (3)slope resistance, fT: 6.5mΩ; (4)reverse current, IR: 3mA; (5)lead resistance, terminals-chip: 4mΩ.

Diagrams

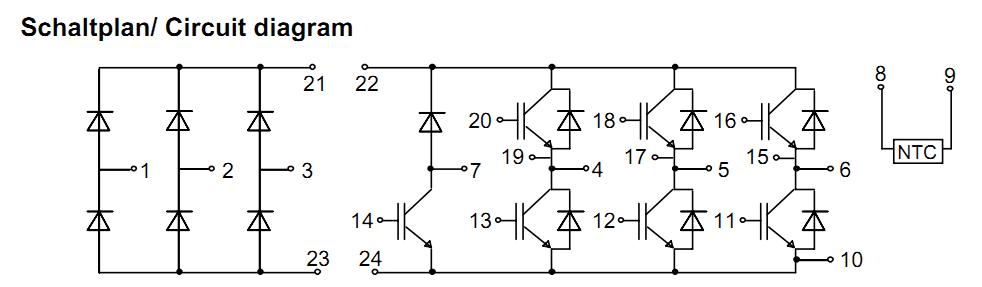

FP75R12KE3 circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FP75R12KE3
FP75R12KE3
Infineon Technologies
IGBT Modules 1200V 75A PIM
Data Sheet
0-1: $109.97
1-5: $104.47
5-10: $98.97
