Product Summary

The fs100r12kt3 is an IGBT module.

Parametrics

fs100r12kt3 absolute maximum ratings: (1)repetitive peak reverse voltage, VRRM: 1200V; (2)DC forward current, IF: 100A; (3)repetitive peak forward current, IFRM: 200A; (4)I2t-value, I2t: 1950A2s.

Features

fs100r12kt3 features: (1)collector-emitter voltage, VCES: 1200V; (2)DC-collector current, IC: 100A; (3)repetitive peakd collector current, ICRM: 200A; (4)total power dissipation, Ptot: 480W; (5)gate-emitter peak voltage, VGES: ±20V.

Diagrams

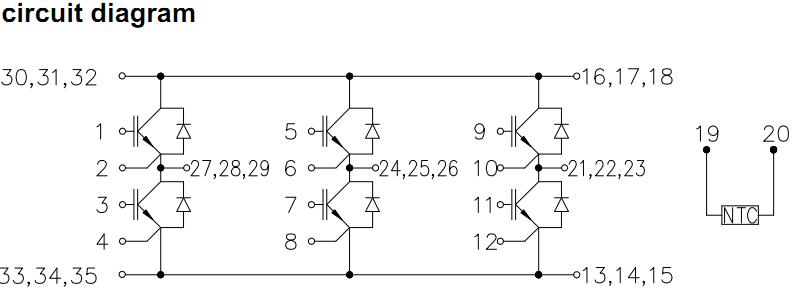

fs100r12kt3 circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FS100R12KT3
FS100R12KT3
Infineon Technologies
IGBT Modules N-CH 1.2KV 140A
