Product Summary

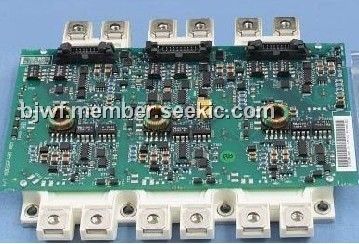

The FS300R12KE3/AGDR-72C is an IGBT3 and EmCon High Efficiency diode.

Parametrics

FS300R12KE3/AGDR-72C absolute maximum ratings: (1)Collector emitter voltage, VCES: 1200V; (2)DC collector current: Tc= 80℃, IC: nom, 300A; Tc= 25℃, IC: 500A; (3)Repetitive peak collector current, tp= 1ms, Tc= 80℃, ICRM: 600A; (4)Total power dissipation, Tc= 25℃, Ptot: 1,45kW; (5)Gate emitter spitzenspannung gate emitter peak voltage, VGES: ±20V; (6)DC forward current, IF: 300A; (7)Repetitive peak forward current, tp= 1ms, IFRM: 600A; (8)I2t value, VR= 0V, tp= 10ms, Tvj= 125℃, I2t: 19kA2s; (9)Insulation test voltage, RMS, f= 50Hz, t= 1min, VISOL: 2.5kV.

Features

FS300R12KE3/AGDR-72C features: (1)High speed switching; (2)Voltage drive; (3)Low inductance module structure.

Diagrams

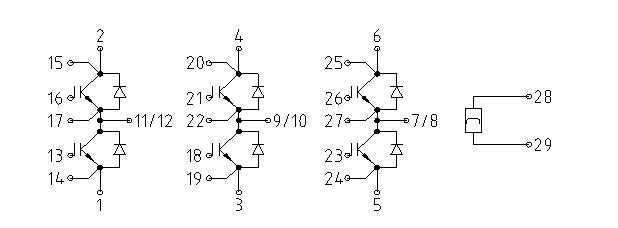

FS300R12KE3/AGDR-72C circuit diagram
