Product Summary

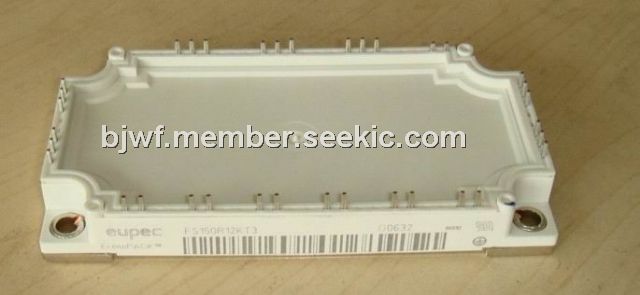

The fs150r12kt3 is an IGBT module.

Parametrics

fs150r12kt3 absolute maximum ratings: (1)collector-emitter voltage, VCES: 1200V; (2)DC-collector current, IC: 200A; (3)repetitive peak collector current, ICRM: 300A; (4)total power dissipation, Ptot: 700W; (5)gate-emitter peak voltage, VGES: ±20V.

Features

fs150r12kt3 features: (1)forward voltage, VF: 1.65 to 2.15V; (2)peak reverse recovery current, IRM: 190A; (3)recovered charge, Qr: 17.0μC; (4)reverse recovery energy, Erec: 700mJ; (5)thermal resistance, junction to case, RthJC: 0.34K/W.

Diagrams

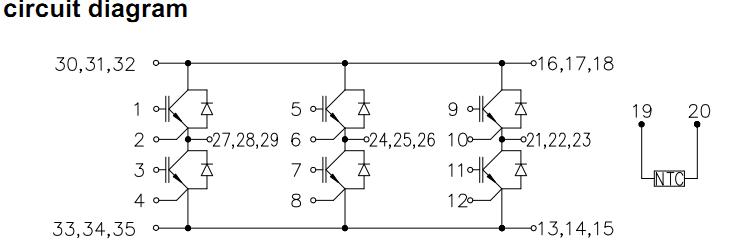

fs150r12kt3 circuit diagram
