Product Summary
The ff400r12ke3 is an IGBT module.
Parametrics
ff400r12ke3 absolute maximum ratings: (1)collector-emitter voltage, VCES: 1200V; (2)DC-collector curretn, IC: 580A; (3)repetitive peak collector curretn, ICRM: 800A; (4)total power dissipation, Ptot: 2000W; (5)gate-emitter peak voltage, VGES: ±20V.
Features
ff400r12ke3 features: (1)forward voltage, VF: 1.65V; (2)peak reverse recovery current, IRM: 480A; (3)recovered charge, QF: 80μC; (4)reverse recovery energy, Erec: 37.0mJ; (5)thermal resistance, junction to case, RthJC: 0.11K/W.

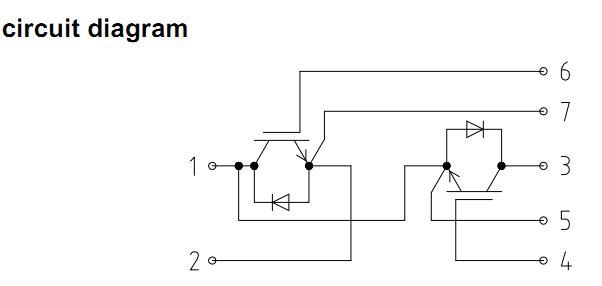

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FF400R12KE3 |
Infineon Technologies |
IGBT Modules 1200V 400A DUAL HALF BRIDGE |
Data Sheet |
|
|
||||||||
|
FF400R12KE3_B2 |
Infineon Technologies |
IGBT Modules N-CH 1.2KV 580A |
Data Sheet |
|
|
||||||||
