CM100DY-24H

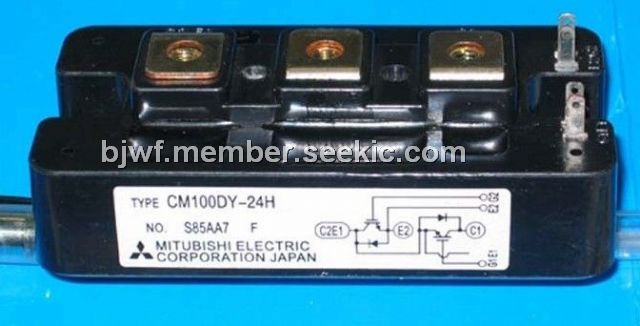

Mitsubishi IGBT Module, 1200 Volts, 100 Amperes, 780 Watts, Low Drive Power, High Frequency Operation

Rated 5 Rating 5 | reviews | Write a review

Price:: US $55.00~87.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $55.00~87.00

PartNumber:: CM100DY-24H

Brand:: Mitsubishi Electric Semiconductor - MES | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Rita's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-28

From Other Seller

Part Number:CM100DY-24H
US $55.00 - 87.00
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

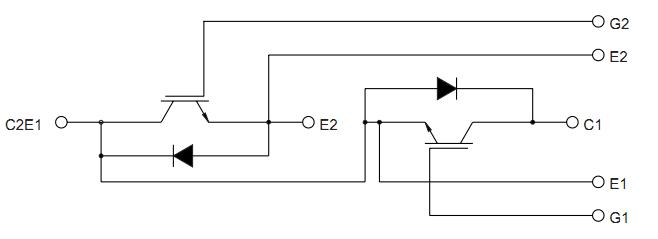

The CM100DY-24H is a Mitsubishi IGBT Module designed for use in switching applications. Each module consists of two IGBTs in a half-bridge configuration with each transistor having a reverse-connected super-fast re-covery free-wheel diode. All components and interconnects are isolated from the heat sinking base-plate, offering simplified system assembly and thermal management. The applications of the CM100DY-24H include AC Motor Control, Motion/Servo Control, UPS and Welding Power Supplies.

Parametrics

CM100DY-24H absolute maximum ratings: (1)Junction Temperature, Tj:–40 to 150℃; (2)Storage Temperature, Tstg: –40 to 125℃; (3)Collector-Emitter Voltage (G-E SHORT), VCES: 1200 Volts; (4)Gate-Emitter Voltage (C-E SHORT), VGES: ±20 Volts; (5)Collector Current (TC = 25℃), IC: 100 Amperes; (6)Peak Collector Current, ICM: 200 Amperes; (7)Emitter Current (TC = 25℃), IE: 100 Amperes; (8)Peak Emitter Current, IEM: 200 Amperes; (9)Maximum Collector Dissipation , Pc: 780 Watts; (10)Isolation Voltage (Main Terminal to Baseplate, AC 1 min.): 2500 Vrms.

Features

CM100DY-24H features: (1)Low Drive Power; (2)Low VCE(sat); (3)Discrete Super-Fast Recovery Free-Wheel Diode; (4)High Frequency Operation; (5)Isolated Baseplate for Easy Heat Sinking.
