Product Summary

The fz800r12kf4 is a module.

Parametrics

fz800r12kf4 absolute maximum ratings: (1)collector-emitter voltage, VCES: 1200 V; (2)DC-collector current, IC: 800 A; (3)repetitive peak collctor current, ICRM: 1600 A; (4)total power dissipation, Ptot: 5400 W; (5)gate-emitter peak voltage, VGE: ± 20 V; (6)DC forward current, IF: 800 A; (7)repetitive peak forw. current, IFRM: 1600 A; (8)insulation test voltage, VISOL: 2,5 kV.

Features

fz800r12kf4 features: (1)forward voltage, VF 2.2 to 2.7V; (2)peak reverse recovery current, IRM: 280A; (3)recovered charge, Qr: 35μAs.

Diagrams

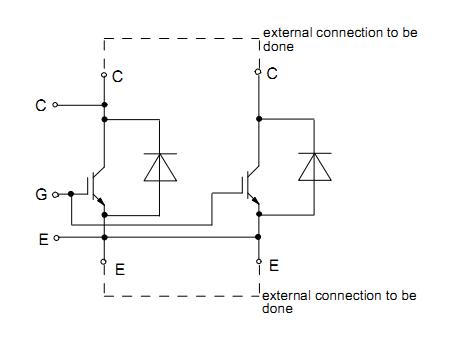

fz800r12kf4 block diagram
