Product Summary

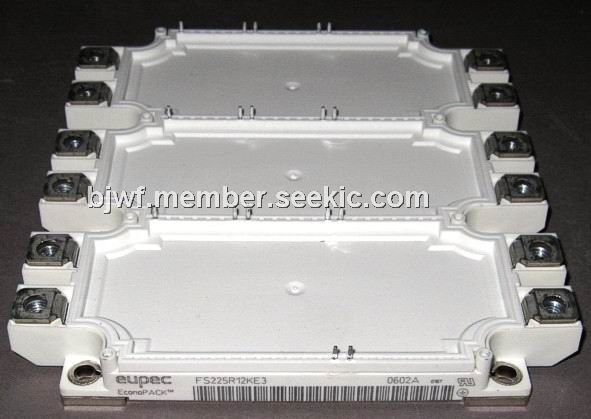

The fs225r12ke3 is an IGBT module.

Parametrics

fs225r12ke3 absolute maximum ratings: (1)collector emitter voltage, VCES: 1200V; (2)DC collector current, IC: 325A; (3)repetitive peak collector current, ICRM: 450A; (4)total power dissipation, Ptot: 1100W; (5)gate emitter peak voltage, VGES: ±20V; (6)DC forward current, IF: 225A; (7)repetitive peak forward current, IFRM: 450A; (8)I2t value, I2t: 10A2s; (9)insulation test voltage, ViSOL: 2.5KV.

Features

fs225r12ke3 features: (1)collector emitter satration voltage, VCE sat: 1.7 to 2.1V; (2)gate threshold voltage, VGE(th): 5 to 6.5V; 5.8V typ; (3)gate charge, QG: 2.1μC; (4)input capacitance, Cies: 16nF; (5)reverse transfer capacitance, Cres: 0.75nF; (6)collector emitter cut off current, ICES: 5mA; (7)gate emitter leakage current, IGES: 400nA.

Diagrams

fs225r12ke3 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FS225R12KE3
FS225R12KE3
Infineon Technologies
IGBT Modules 1200V 225A 3-PHASE
Data Sheet
0-1: $305.81
1-10: $275.23
