Product Summary
The PM150RLA120 is an intelligent power module. It is suitable for general purpose inverter, servo drives and other motor controls.
Parametrics
PM150RLA120 absolute maximum ratings: (1)Collector-Emitter Voltage, VCES: 1200V; (2)Collector Current, ±IC: 150A; (3)Collector Current (Peak), ±ICP: 300A; (4)Collector Dissipation, PC: 1041W; (5)Junction Temperature, Tj: -20 to 150℃.
Features
PM150RLA120 features: (1)Adopting new 5th generation IGBT (CSTBT) chip, which performance is improved by 1μm fine rule process; (2)I adopt the over-temperature conservation by Tj detection of CSTBT chip, and error output is possible from all each conservation upper and lower arm of IPM; (3)Current rating of brake part increased; (4)3φ 150A, 1200V Current-sense IGBT type inverter; (5)75A, 1200V Current-sense regenerative brake IGBT; (6)Monolithic gate drive & protection logic; (7)Acoustic noise-less 30kW class inverter application; (8)UL Recognized Yellow Card No.E80276(N) File No.E80271.

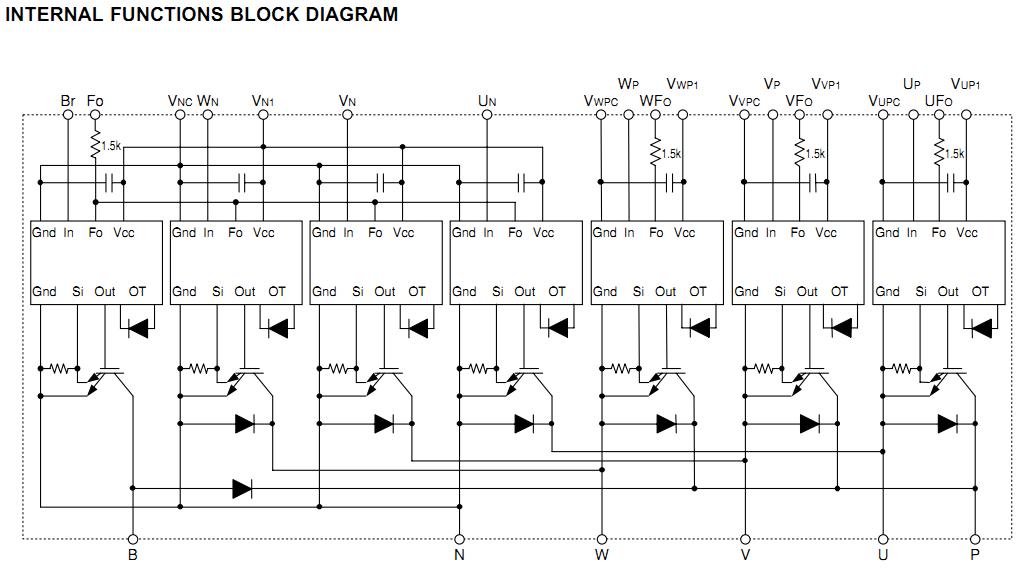

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PM150RLA120 |
|
MOD IPM L-SER 7PAC 1200V 150A |
Data Sheet |
|
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
|
PM150CBS060 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
PM150CL1A060 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
PM150CL1A120 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
PM150CL1B060 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
PM150CLA060 |
|
MOD IPM L-SER 6PAC 600V 150A |
Data Sheet |
|
|
||||||
|
PM150CLA120 |
|
MOD IPM L-SER 6PAC 1200V 150A |
Data Sheet |
|
|
||||||
