Product Summary

The bsm200ga120dlcs is an IGBT module.

Parametrics

bsm200ga120dlcs absolute maximum ratings: (1)collector emitter voltage, VCES: 3300V; (2)DC collector current, IC: 1300A; (3)repetitive peak collector current, ICRM: 1600A; (4)total power dissipation, Ptot: 9.6kW; (5)gate-emitter peak voltage, VGES: ±20V.

Features

bsm200ga120dlcs features: (1)forward voltage, VF: 2.8V; (2)peak reverse recovery current, IRM: 1100A; (3)recovered charge, Qr: 500μC.

Diagrams

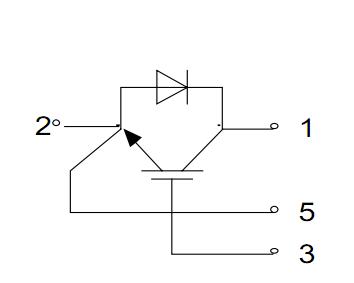

bsm200ga120dlcs block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BSM200GA120DLCS
BSM200GA120DLCS
Infineon Technologies
IGBT Modules 1200V 200A SINGLE
Data Sheet
0-6: $74.68
6-10: $67.21
