Product Summary

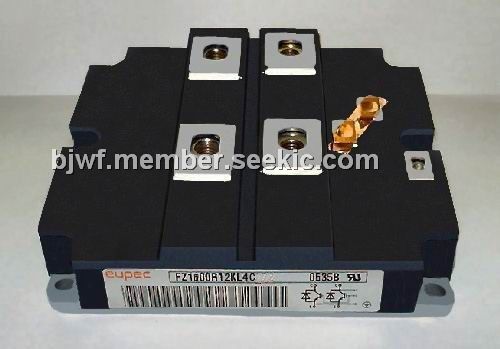

The fz1600r12kl4c is an IGBT module.

Parametrics

fz1600r12kl4c absolute maximum ratings: (1)collector-emitter voltage, VCES: 1200V; (2)DC-collector current, IC: 2450A; (3)repetitive peak collector current, ICRM: 3200A; (4)total power dissipation, Ptot: 10KW; (5)gate-emitter peak voltage, VGES: +/-20V; (6)DC forward current, IF: 1600A; (7)repetitive peak forw. current, IFRM: 3200A; (8)I2t value, diode, I2t: 590kA2s; (9)insulation test voltage, ViSOL: 2.5kV.

Features

fz1600r12kl4c features: (1)collector-emitter saturation voltage, VCE sat: 2.1 to 2.6V; (2)gate threshold voltage, VGE9th): 4.5 to 6.5V; 5.5V typ; (3)gate charge, QG: 17μC; (4)input capacitance, Cies: 110nF; (5)reverse transfer capacitance, Cres: 7nF; (6)collector-emitter cut-off current, ICES: 0.04 to 1.5mA; (7)gate-emitter leakage current, IGES: 600nA.

Diagrams

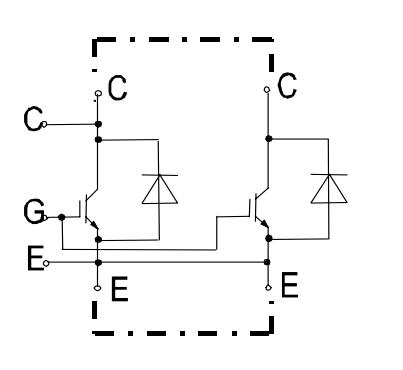

fz1600r12kl4c block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FZ1600R12KL4C
FZ1600R12KL4C
Infineon Technologies
IGBT Modules 1200V 1600A SINGLE
Data Sheet
0-2: $580.42
2-3: $522.38
3-5: $464.33
5-10: $442.39
