Product Summary

The skm300ga123d is a semitrans IGBT modules new range.

Parametrics

skm300ga123d absolute maximum ratings: (1)skm300ga123d VCES: 1200V; (2)IC @ Tcase=25℃: 400A; (3)VCEsat @ Tcase=25℃: 3.2V; (4)Ptot @ Tcase=25℃: 2500W; (5)R IGBT: 0.05℃/W; (6)RthCH: 0.038℃/W.

Diagrams

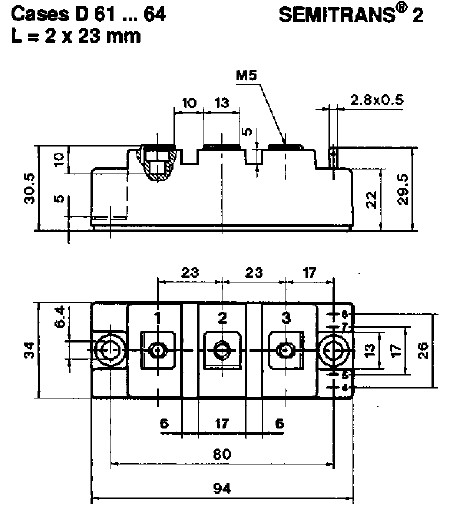

skm300ga123d pin diagram
