Product Summary
The skm400ga124d is a low loss IGBT module.
Parametrics
skm400ga124d absolute maximum ratings: (1)VCES: 1200V; (2)IC, TC=25(80)℃:600(400)A; (3)ICRM, tp=1ms: 600A; (4)VGES: ±20V; (5)Tvj, Tstg, TOPERATION≤Tstg: -40 to +150(125)℃; (6)Visol, AC, 1MIN.: 2500V.
Features
skm400ga124d features: (1)MOS input; (2)N channel, homheneous Si-structure; (3)Low inductance case; (4)Very low tail current with low temperature dependence; (5)High short circuit capability, self limiting to 6 x Icnorn; (6)Latch up free; (7)Fast and soft inverse CAL diodes; (8)Isolated copper baseplate using DBC direct copper bonding technology; (9)Large clearance and creepage distances.

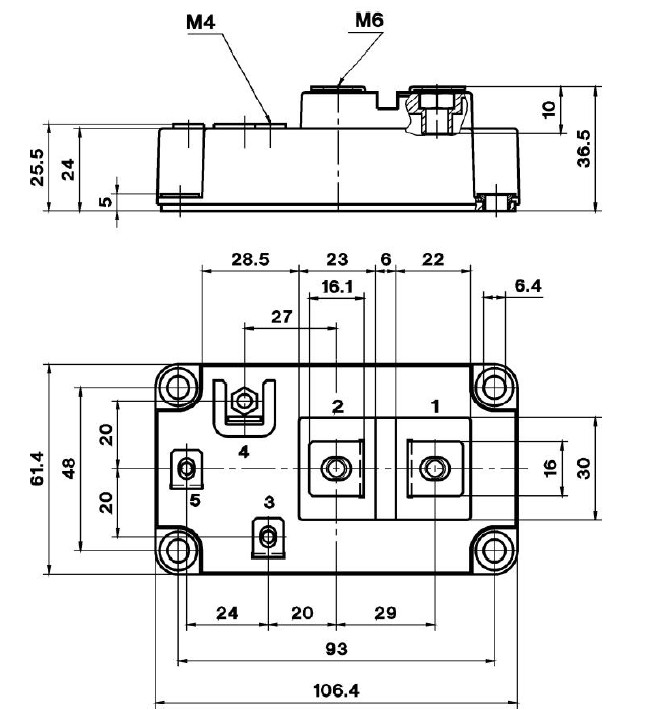

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 SKM400GA124D |
Other |
|
Data Sheet |
Negotiable |
|
||||
