Product Summary

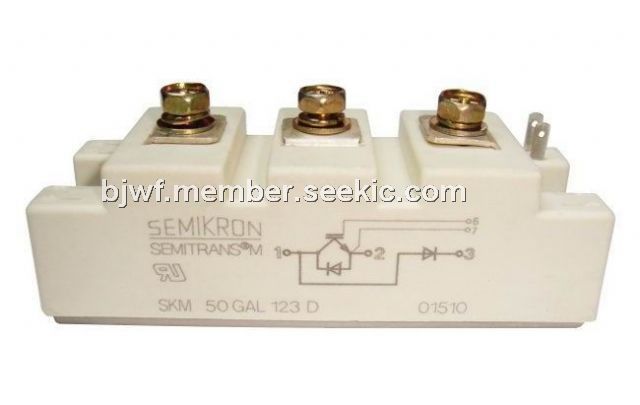

The skm50gal123d is an IGBT module. It is suitable for three phase ivnerter drivers and switching.
Parametrics
skm50gal123d absolute maximum ratings: (1)VCES: 1200V; (2)VCGR: 1200V; (3)IC: 50A; (4)ICM: 100A; (5)VGES: ±20V; (6)Ptot: 310W; (7)Visol: 2500V.
Features
skm50gal123d features: (1)MOS input (voltage controlled); (2)N channel, homogeneous Si; (3)low inductance case; (4)very low tail current with low temperature dependence; (5)high short circuit capability, self limiting to 6Icnom; (6)latch-up free; (7)fast & soft inverse CAL diodes; (8)isolated copper baseplate using DCB direct copper bonding technology; (9)large clearance and creepage distances.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 SKM50GAL123D |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
SKM500GA123D |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SKM500GA124D |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SKM500GA128D |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SKM500GA174D |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SKM50GAL100D |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SKM50GAL123D |
Other |
|
Data Sheet |
Negotiable |
|
||||
