Product Summary

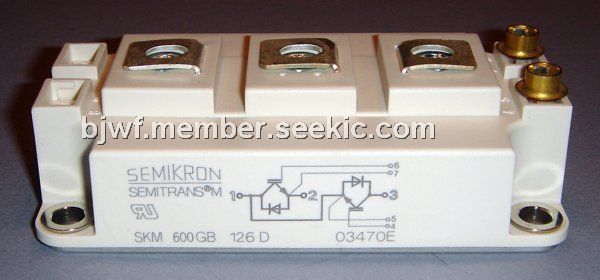

The skm600gb126d is an IGBT module. It is suitable for AC inverter drives, UPS and electronic welders.

Parametrics

skm600gb126d absolute maximum ratings: (1)VCES: 1200V; (2)IC: 660A; (3)ICRM: 800A; (4)VGES: ±20V; (5)tpsc: 10μs.

Features

skm600gb126d features: (1)Trench=trenchgate technology; (2)VCEsat with positive temperature coefficient; (3)high short circuit capability, self limiting to 6IC.

Diagrams

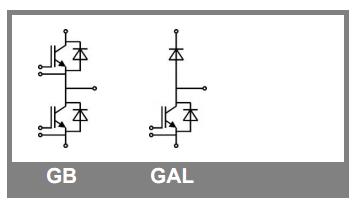

skm600gb126d circuit diagram

SKM600GA125D
SKM600GA125D
