Product Summary

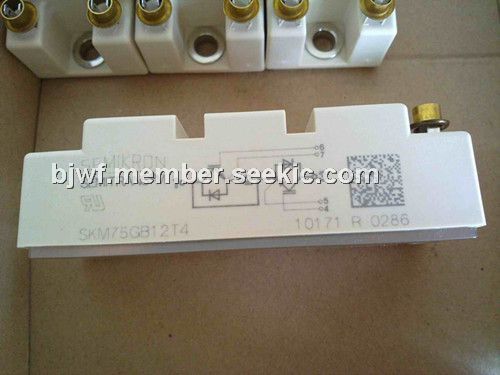

The skm75gb12t4 is an IGBT Module. It is suitable for AC inverter drives, UPS and electronic welders at fSW up to 20kHz.
Parametrics
skm75gb12t4 absolute maximum ratings: (1)VCES: 1200V; (2)Ic: 110A; (3)ICRM: 225A; (4)VGES: ±20V; (5)tpsc: 10μS.
Features
skm75gb12t4 features: (1)IGBT4=4 Generation (Trench) IGBT; (2)VCEsat with positive temperature coefficient; (3)High short circuit capability, self limiting; (4)Soft switching 4 Generation CAL diode.

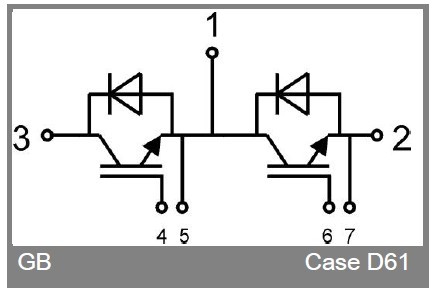

Diagrams
 |
