Product Summary
The 6DI30A-120 is a power transistor module. It is suitable for AC motor controls and air conditionens.
Parametrics
6DI30A-120 absolute maximum ratings: (1)VCBO: 1200V; (2)VCEO: 1200V; (3)VEBO: 10V; (4)IC: 30A; (5)ICP: 60A; (6)-IC: 30A; (7)IB: 3A; (8)IBP: 6A; (9)PC: 230W; (10)PC: 1380W; (11)Tj: 150℃; (12)Tstg: -40 to 125℃; (13)m: 450g; (14)Viso: 2500V.
Features
6DI30A-120 features: (1)high voltage; (2)including free wheeling diode; (3)insulated type.

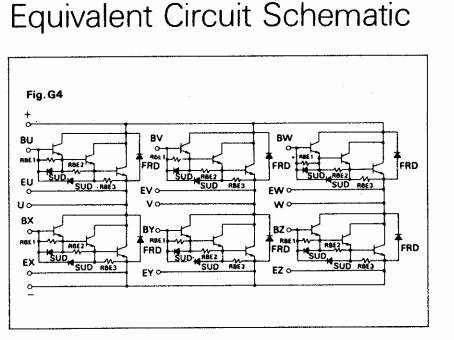

Diagrams
 |
