Product Summary

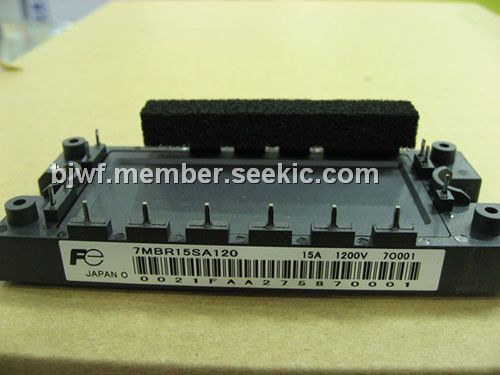

The 7MBR15SA120 is an IGBT module. The applications of the device include Inverter for motor drive, AC and DC servo drive amplifier and Uninterruptible power supply.
Parametrics
7MBR15SA120 absolute maximum ratings: (1)inverter, Collector-Emitter voltage, VCES: 1200V; Gate-Emitter voltage, VGES: ±20V; Collector current, IC, continuous: 25A at Tc=25℃; 15A at Tc=80℃; ICP, 1ms: 50A when Tc=25℃; 30A when Tc=80℃; Collector power dissipation, PC: 110W; (2)brake, Collector-Emitter voltage, VCES: 1200V; Gate-Emitter voltage, VGES: ±20V; Collector current, IC, continuous: 25A at Tc=25℃; 15A at Tc=80℃; ICP, 1ms: 50A when Tc=25℃; 30A when Tc=80℃; Collector power dissipation, PC: 110W; Repetitive peak reverse voltage, VRRM: 1200V; (3)converter, Repetitive peak reverse voltage, VRRM: 1600V; Average output current, IO: 15A; Surge current, IFSM: 155A; I2t: 120A2s ; (4)Operating junction temperature, Tj: 150℃; (5)Storage temperature, Tstg: -40 to 125℃.
Features
7MBR15SA120 features: (1)Low VCE(sat); (2)Compact package; (3)PC board mount; (4)Converter diode bridge, Dynamic brake circuit.

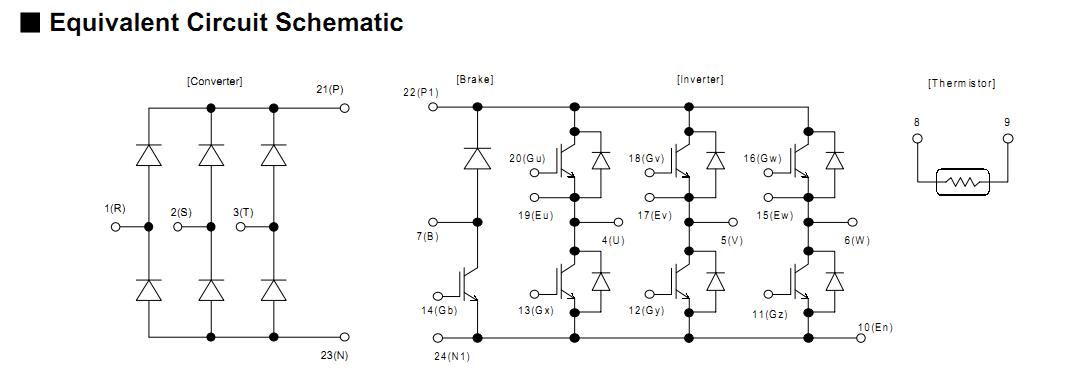

Diagrams
