Product Summary

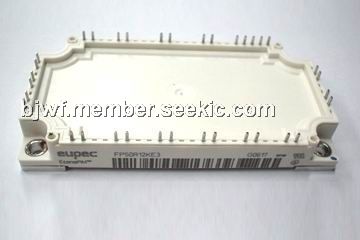

The FP50R12KE3 is an IGBT-Module.
Parametrics
FP50R12KE3 absolute maximum ratings: (1)repetitive peak reverse voltage: 1600 V; (2)maximum RMS current at Rectifier output: t.b.d. A; (3)DC forward current: 50 A at TC = 80℃; (4)surge forward current: 500 A at tP = 10 ms, Tvj = 25℃, 400 A at tP = 10 ms, Tvj = 150℃; (5)I2t - value: 800 A2s at tP = 10 ms, Tvj = 150℃, 1250 A2s at tP = 10 ms, Tvj = 25℃.
Features
FP50R12KE3 features: (1)internal insulation: Al2O3; (2)comperative tracking index: 225; (3)mounting torque: ±10%; (4)weight: 300 g.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FP50R12KE3 |
Infineon Technologies |
IGBT Modules 1200V 50A PIM |
Data Sheet |
|
|
||||||||||
