Product Summary

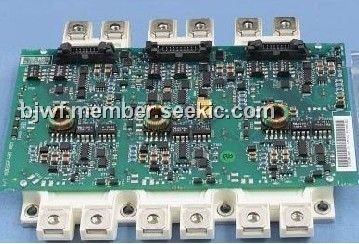

The FS225R17KE3/AGDR-66C is an EconoPACK module with trench/fieldstop IGBT and EmCon3 diode.

Parametrics

FS225R17KE3/AGDR-66C absolute maximum ratings: (1)Collector emitter voltage, Tvj= 25℃, VCES: 1700V; (2)DC-collector current: Tc= 80℃, Tvj= 150℃, ICnom: 225A; Tc= 25℃, Tvj= 150℃, IC: 340A; (3)Repetitive peak collector current, tp= 1ms, ICRM: 450A; (4)Total power dissipation, Tc= 25℃, Tvj= 150℃, Ptot: 1400W; (5)Gate-emitter peak voltage, VGES: ±20V.

Features

FS225R17KE3/AGDR-66C features: (1)Square RBSOA; (2)Low saturation voltage; (3)Less total power dissipation; (4)Improved FWD characteristic; (5)Minimized internal stray inductance; (6)Overcurrent limiting function.

Diagrams

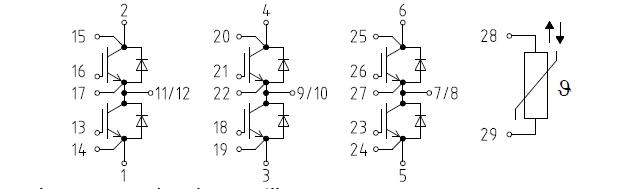

FS225R17KE3/AGDR-66C circuit diagram
