Product Summary

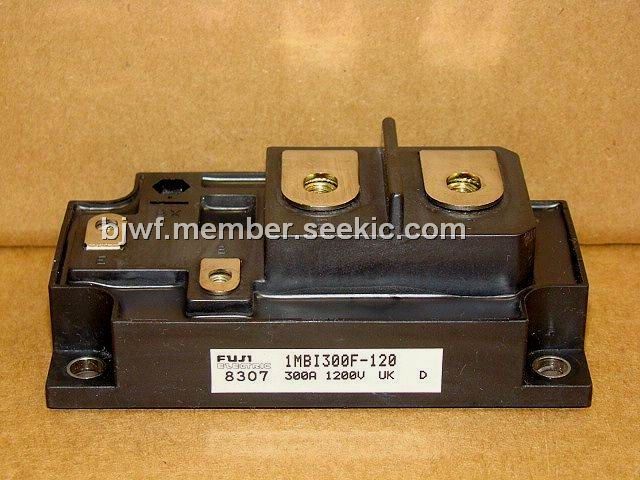

The 1MBI300F-120 is an IGBT module. It is suitable for inverter for motor drive, AC and DC servo drive amplifer, uninterruptile power supply and industrial machines, such as welding machines.
Parametrics
1MBI300F-120 absolute maximum ratings: (1)collector-emitter voltage, VCES: 1200V; (2)gate-emitter votlage, VGES: ±20V; (3)collector current, continuous, IC: 300A; 1ms, IC pulse: 600A; continuous, -ic: 300A; 1ms, -IC pulse: 600A; (4)max power dissipation, PC: 1800W; (5)operating temperature, Tj: 150℃; (6)storage temperature, Tstg: -40 to 125℃; (7)net weight: 415g; (8)isolation voltage, AC 1min, Visol: 2500V.
Features
1MBI300F-120 features: (1)low saturation voltage; (2)votlage drive; (3)variety of power capacity series.

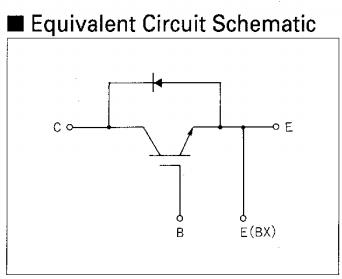

Diagrams
 |
