Product Summary

The FS300R17KE3 is an IGBT module.

Parametrics

FS300R17KE3 absolute maximum ratings: (1)collector-emitter voltage, VCES: 1700V; (2)DC-collector current, IC: 375A; (3)repetitive peak collector current,ICRM: 600A; (4)total poer dissipation, Ptot: 1650W; (5)gate-emitter peak voltage, VGES: +/-20V.

Features

FS300R17KE3 features: (1)repetitive peak reverse voltage, VRRM: 1700V; (2)DC forward current, IF: 300A; (3)repetitive peak forward current, IFRM: 600A; (4)I2t value, I2t: 14500A2s.

Diagrams

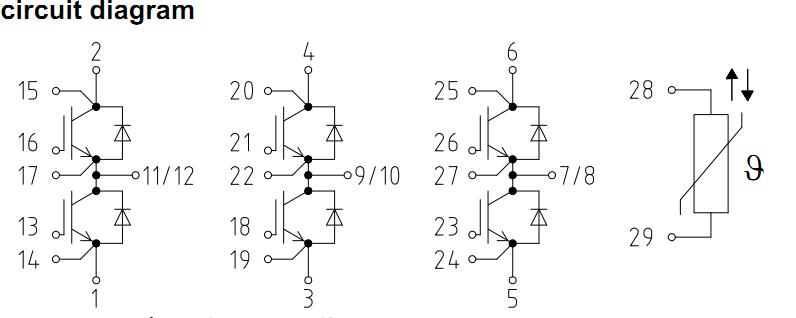

FS300R17KE3 circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FS300R17KE3
FS300R17KE3
Infineon Technologies
IGBT Modules 1700V 300A 3-PHASE
Data Sheet
0-2: $477.85
2-10: $430.06
