Product Summary

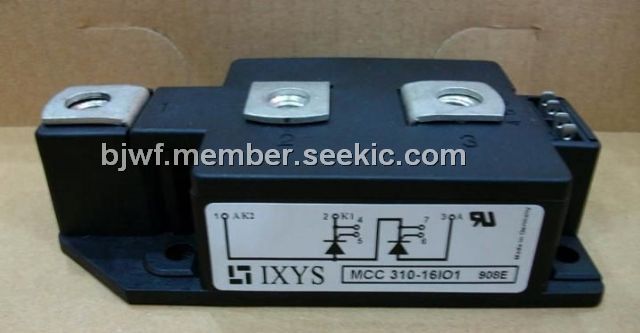

The MCC310-16IO1 is a Thyristor Module. The applications of the MCC310-16IO1B are Motor control, Power converter, Lighting control, Contactless switches, Heat and temperature control for industrial furnaces and chemical processes.

Parametrics

MCC310-16IO1 absolute maximum ratings: (1)ITRMS, IFRMS:500 A; (2)ITAVM, IFAVM:320 A; (3)PGM: 120 W or 60W; (4)PGAV:20 W; (5)VRGM:10 V; (6)TVJ:-40 to +140℃; (7)TVJM:140℃; (8)Tstg:-40 to +125℃; (9)Visol:3000V or 3600V; (10)Weight:320g; (11)(di/dt)cr:100 or 500A/us; (12)(dv/dt)cr:1000V/us.

Features

MCC310-16IO1 features: (1)International standard package; (2)Direct copper bonded Al2O3 -ceramic base plate; (3)Planar passivated chips; (4)Isolation voltage 3600 V; (5)UL registered, E 72873; (6)Keyed gate/cathode twin pins.

Diagrams

MCC310-16IO1 circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MCC310-16io1
MCC310-16io1

Ixys

Discrete Semiconductor Modules 310 Amps 1600V

Data Sheet

Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MCC310
MCC310

Other


Data Sheet

Negotiable
MCC310-08io1
MCC310-08io1

Ixys

Discrete Semiconductor Modules 310 Amps 800V

Data Sheet

Negotiable
MCC310-12io1
MCC310-12io1

Ixys

Discrete Semiconductor Modules 310 Amps 1200V

Data Sheet

Negotiable
MCC310-14io1
MCC310-14io1

Ixys

Discrete Semiconductor Modules MOD THYRISTOR DUAL 1400V 320 AMP

Data Sheet

Negotiable
MCC310-16io1
MCC310-16io1

Ixys

Discrete Semiconductor Modules 310 Amps 1600V

Data Sheet

Negotiable
MCC310-18io1
MCC310-18io1

Ixys

Discrete Semiconductor Modules 310 Amps 1800V

Data Sheet

Negotiable
